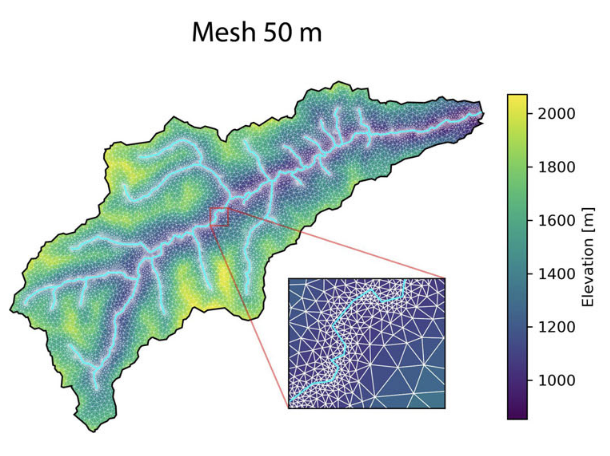

The streambed is the critical interface between the aquatic and terrestrial systems and hosts important biogeochemical hot spots within river corridors. Although the streambed characteristics are significantly different from those of its surrounding soil, the streambed itself has not been explicitly represented in watershed models. Here, we explicitly incorporated a streambed layer into an integrated hydrologic model through model parameterization and discretization. We examined the hydrological effects of streambed characteristics, including hydraulic conductivity (K), layer thickness, and resolution, on the exchange fluxes across the streambed as well as the streamflow at the watershed outlet. The numerical experiments were performed in the American River Watershed, a headwater, mountainous watershed within the Yakima River Basin in central Washington. Despite having a negligible effect on the watershed streamflow, an explicit representation of the streambed with distinctive properties dramatically changed the magnitude and variability of the exchange flux. In general, a larger streambed K along with a thicker streambed layer induced larger exchange fluxes. The exchange flux was most sensitive to the streambed resolution. A finer streambed resolution increased exchange fluxes per unit area while reducing the overall exchange volumes across the entire streambed. The amount of baseflow decreased by 6% as the streambed resolution increased from 250 to 50 m. This finding is important because these hydrological changes may, in turn, affect the exchange of nutrients and contaminants between surface water and groundwater and the associated biogeochemical processes. Our work demonstrated the importance of representing streambeds in fully distributed, process-based watershed models to better capture the exchange flow dynamics in river corridors.

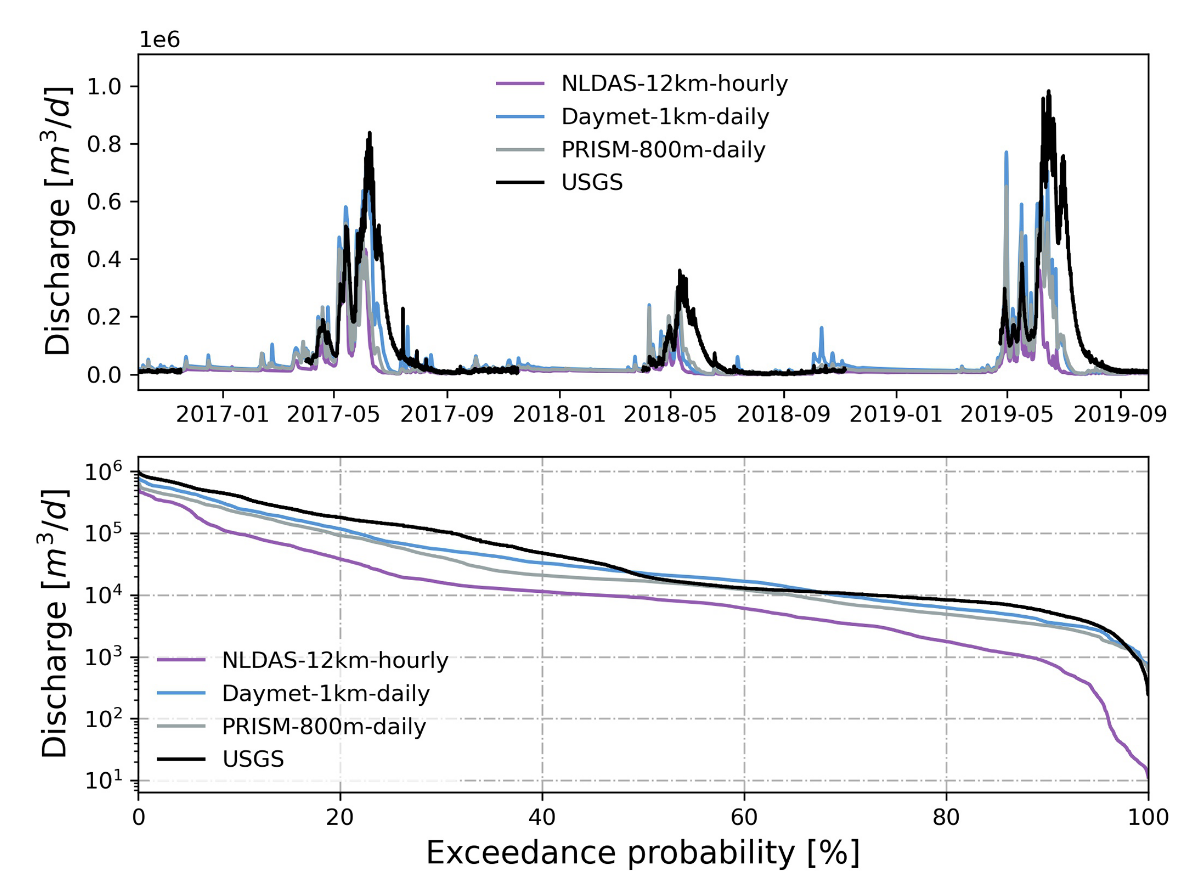

Meteorological forcing plays a critical role in accurately simulating the watershed hydrological cycle. With the advancement of high-performance computing and the development of integrated watershed models, simulating the watershed hydrological cycle at high temporal (hourly to daily) and spatial resolution (tens of meters) has become efficient and computationally affordable. These hyperresolution watershed models require high resolution of meteorological forcing as model input to ensure the fidelity and accuracy of simulated responses. In this study, we utilized the Advanced Terrestrial Simulator (ATS), an integrated watershed model, to simulate surface and subsurface flow and land surface processes using unstructured meshes at the Coal Creek Watershed near Crested Butte (Colorado). We compared simulated watershed hydrologic responses including streamflow and distributed variables such as evapotranspiration, snow water equivalent (SWE), and groundwater table driven by three publicly available, gridded meteorological forcings (GMFs) – Daily Surface Weather and Climatological Summaries (Daymet), the Parameter-elevation Regressions on Independent Slopes Model (PRISM), and the North American Land Data Assimilation System (NLDAS). By comparing various spatial resolutions (ranging from 400 m to 4 km) of PRISM, the simulated streamflow only becomes marginally worse when spatial resolution of meteorological forcing is coarsened to 4 km (or 30 % of the watershed area). However, the 4 km-resolution has much worse performance than finer resolution in spatially distributed variables such as SWE. Using the temporally disaggregated PRISM, we compared models forced by different temporal resolutions (hourly to daily), and sub-daily resolution preserves the dynamic watershed responses (e.g., diurnal fluctuation of streamflow) that are absent in results forced by daily resolution. Conversely, the simulated streamflow shows better performance using daily resolution compared to that using sub-daily resolution. Our findings suggest that the choice of GMF and its spatiotemporal resolution depends on the quantity of interest and its spatial and temporal scale, which may have important implications for model calibration and watershed management decisions.

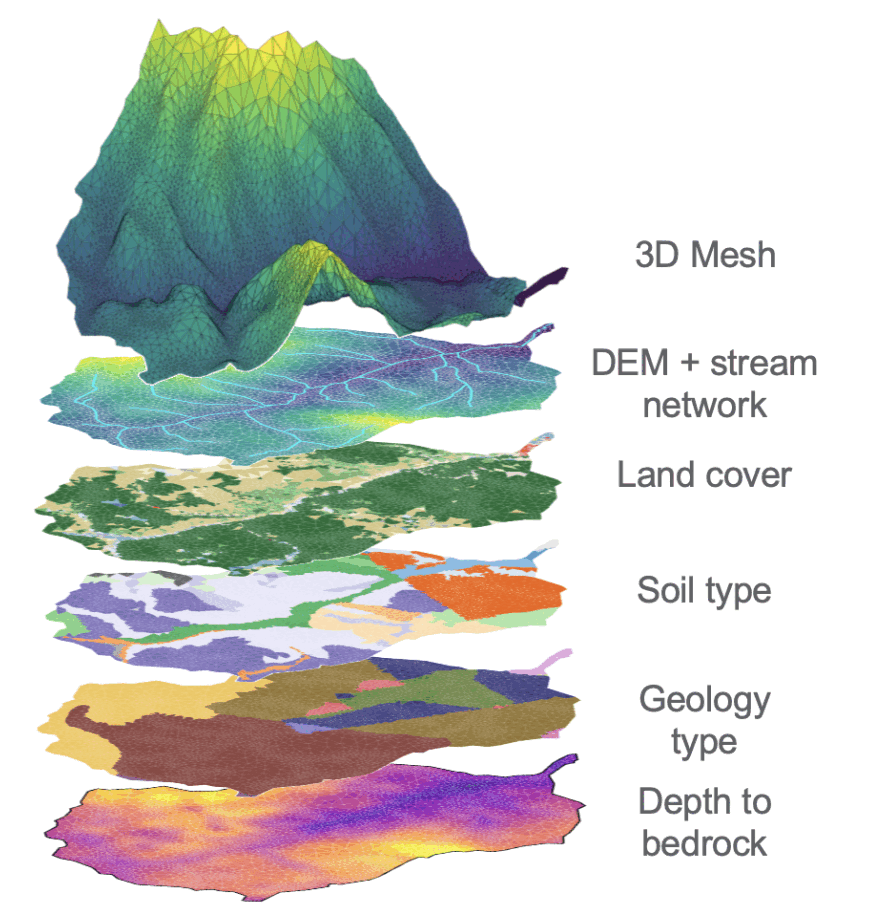

Integrated, distributed hydrologic models leverage advances in computational power and data accessibility to improve predictive understanding of the water cycle. While impressive advances in this area of environmental modeling have been accomplished, such models are still rarely used, partially because of difficulty integrating model and data. This research describes the release of Watershed Workflow version 1.2, a new library aiming to automate and enable complex workflows defining inputs to high resolution, integrated, distributed hydrologic models. Watershed Workflow provides tools enabling the discovery, acquisition, mapping, and coordination of watershed geometry, land cover, soil properties, and meteorological data. It enables the construction of unstructured meshes that incorporate this data, and provides tools for automating a “first” simulation on any watershed in the United States. We present the design of the workflow tool, and describe best practices for its usage, culminating in a final example from watershed specification to simulation at the Coweeta Hydrologic Laboratory.

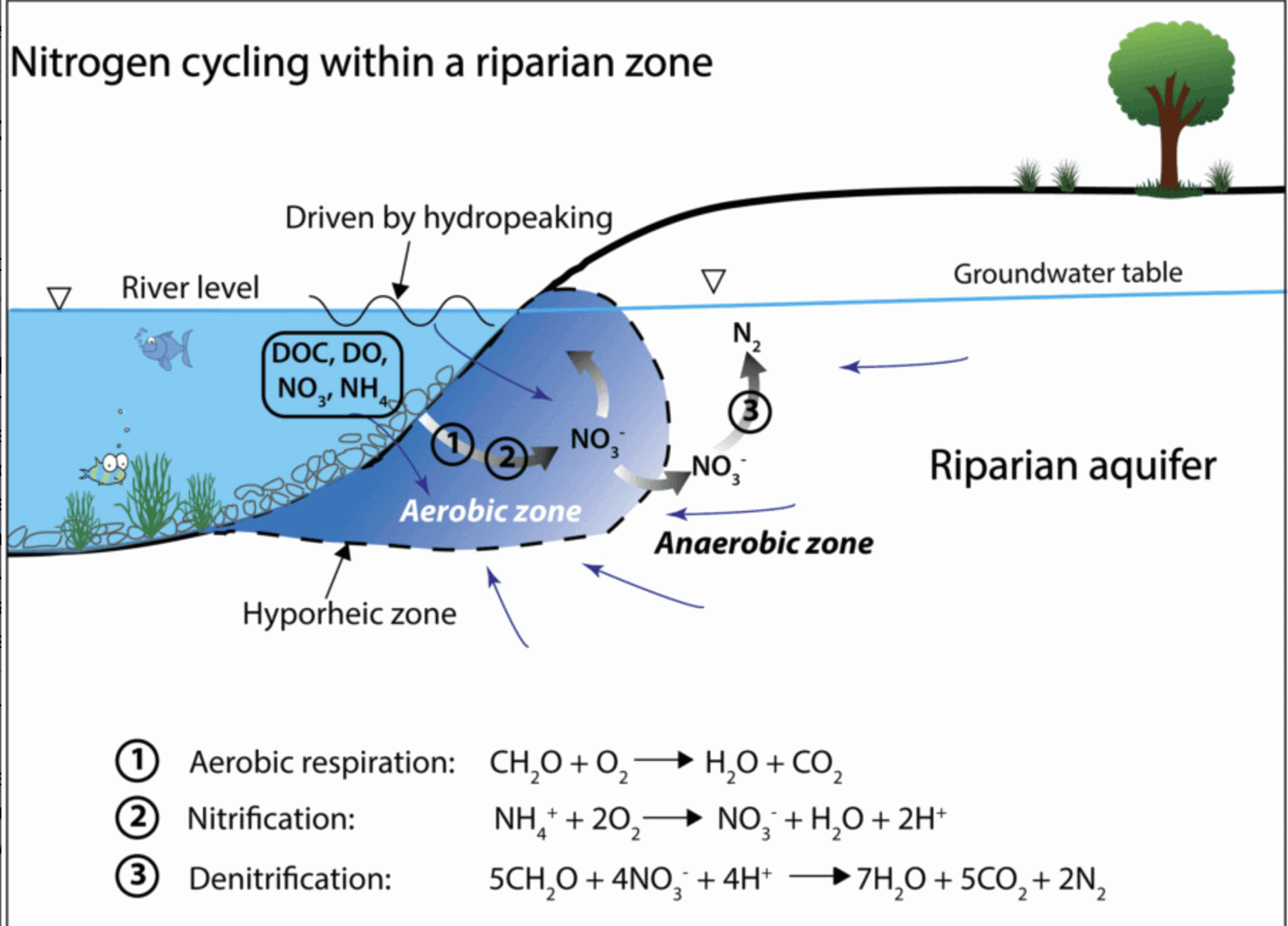

Hyporheic exchange induced by periodic river fluctuations leads to important biogeochemical processes, particularly nitrogen cycling, in riparian zones (RZs) where chemically distinct surface water and groundwater mix. We developed a two-dimensional coupled flow, reactive transport model to study the role of bank storage induced by river fluctuations on removing river-borne nitrate. Sensitivity analyses were conducted to quantify the effects of river amplitude, sediment hydraulic conductivity and dispersivity, and ambient groundwater flow on nitrate removal rate. The simulations showed that nitrification occurred in the shallower zone adjacent to the bank where oxic river water and groundwater interacted while denitrification occurred deeper into the aquifer and in the riverbed sediments where oxygen was depleted. River fluctuations greatly increased the amount of nitrate being removed; the nitrate removal rate increased as river amplitude increased. Similarly, increasing hydraulic conductivity increased overall nitrate removal since it expanded the denitrifying zone but decreased efficiency. In contrast, increasing sediment dispersivity increased the removal efficiency of nitrate because it promoted mixing between electron acceptors and donors. The presence and direction of ambient groundwater flow had a significant impact on nitrate removal rate when compared to neutral conditions. A losing river showed a larger nitrate removal rate, whereas a gaining river showed a smaller nitrate removal rate. Our results demonstrated that daily river fluctuations created denitrification hot spots within the RZ that would not otherwise exist under naturally neutral or gaining conditions.
